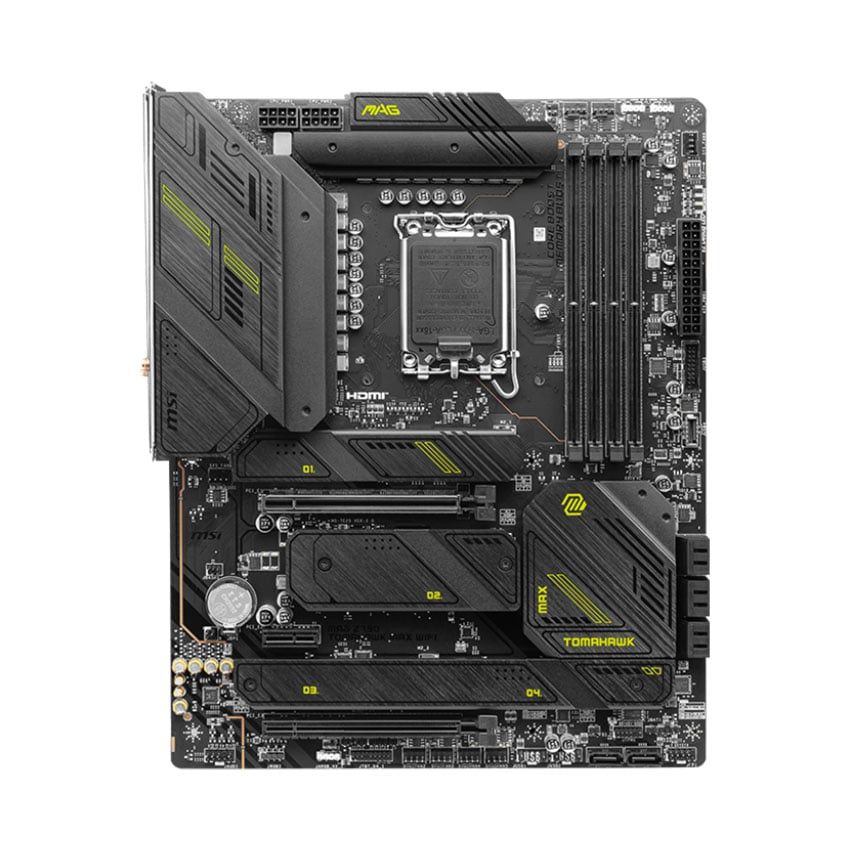

Mainboard MSI MAG Z790 TOMAHAWK MAX WIFI DDR5 (LGA 1700)

• Intel Core 12th/13th/14th, Pentium Gold & Celeron
• Socket LGA1700

• 1 x PCI-E x16
• 1 x PCI-E x16 (Mode x4)
• 1 x PCI-E x1

Hỗ trợ ổ cứng

• 1 x M2 22110/2280/2260 PCIe 5.0 x4
• 1 x M2 2280/2260 PCIe 4.0 x4
• 1 x M2 2280/2260/2242 PCIe 4.0 x4/ SATA
• 1 x M2 2280/2260/2242 PCIe 4.0 x4
• 8 x SATA 6G

Support Raid 0, 1, 5, 10

LAN/Wireless

• LAN: Intel® 2.5Gbps LAN
• Wireless: Wi-Fi 7 + BT 5.4

Audio

Cổng kết nối bên trong

Fan and cooling

1 x CPU Fan

1 x Pump Fan

6 x System Fan

Power

1 x Power Connector(ATX_PWR)

2 x Power Connector(CPU_PWR)

Storage

4 x M.2

8 x SATA 6Gbps

USB

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen2 Type C ports

1x USB4 card connector (JTBT_U4_1, supports RTD3)

Miscellaneous

2 x Front Panel (JFP)

1 x Chassis Intrusion (JCI)

1  x Front Audio (JAUD)

1 x TBT connector (JTBT, supports RTD3)

1 x Tuning Controller connector(JDASH)

3 x Addressable V2 RGB LED connector (JARGB_V2)

1 x RGB LED connector(JRGB)

1 x TPM pin header(Support TPM 2.0)

1 x Display Port

4 x USB 3.2 Gen 1 5 Gbps (Type-A)

1 x USB 3.2 Gen 2 10Gbps (Type-A)

1 x 2.5G LAN

2 x Wi-Fi / Bluetooth

5 x Audio Connectors

1 x HDMI™

1 x Clear CMOS

1 x Flash BIOS

2 x USB 3.2 Gen 2 10Gbps (Type-A)

1 x USB 3.2 Gen 2 10Gbps (Type-C)

1 x USB 3.2 Gen 2x2 20Gbps (Type-C)

Kiểu dáng
