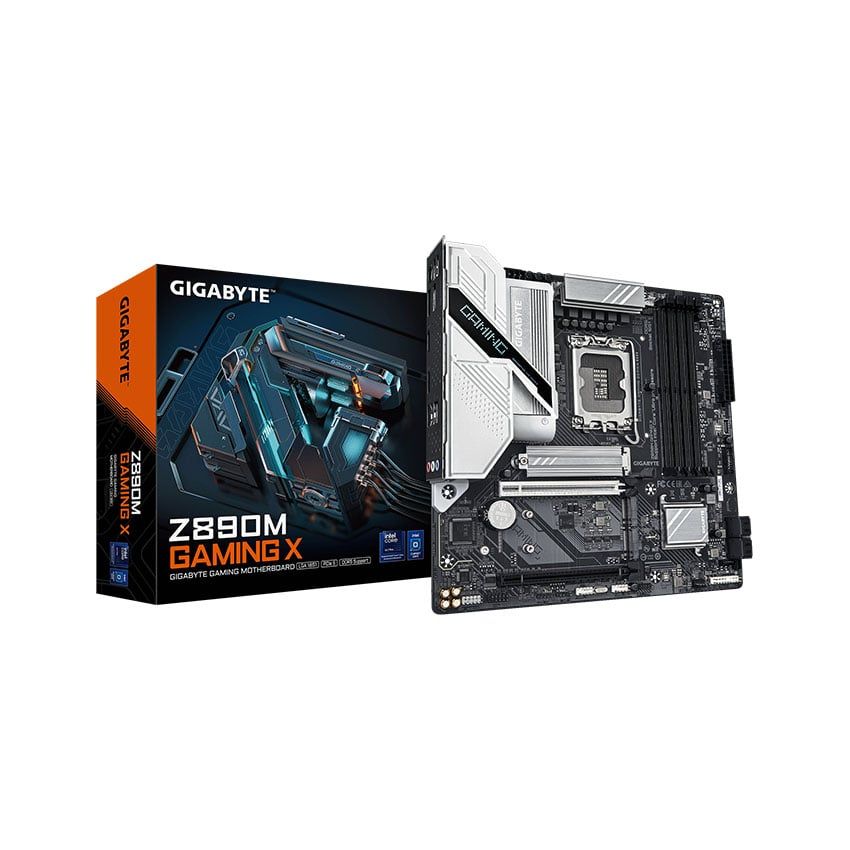

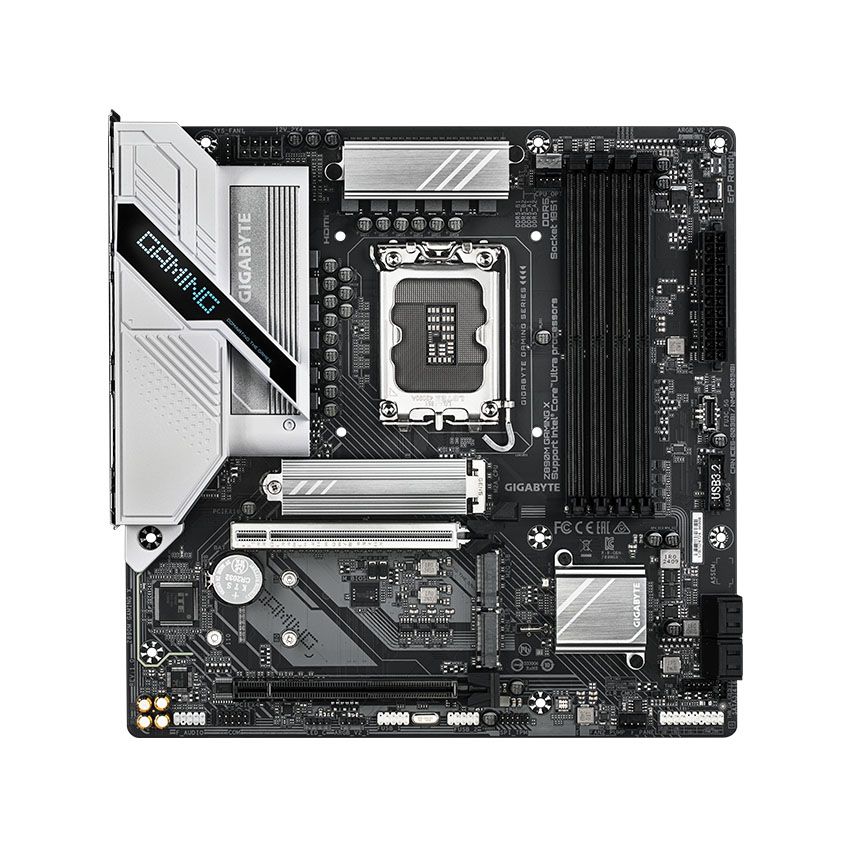

Mainboard Gigabyte Z890M GAMING X

Tình trạng: Còn hàng

Mã sản phẩm: Đang cập nhật

Thương hiệu: Gigabyte

Dòng sản phẩm: Mainboard

~~7,599,000₫~~ 5,999,000₫ Tiết kiệm 21%

Tiêu đề

Z890M GAMING X

Thông số kỹ thuật

Chia sẻ trên Facebook
Chia sẻ trên Google
Chia sẻ trên Twitter
Thêm vào so sánh
Thêm vào yêu thích

Thành phần
Bình luận

THÔNG SỐ SẢN PHẨM

CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors
	L3 cache varies with CPU
	* Please refer to "CPU Support List" for more information.
Chipset	Intel® Z890 Express Chipset
Bộ nhớ	Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Bộ nhớ	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Card đồ họa tích hợp	Integrated Graphics Processor-Intel® HD Graphics support:
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support for native HDMI 2.1 TMDS compatible ports.
	- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 2.1 version.
	(Graphics specifications may vary depending on CPU support.)
	Support for up to triple-display at the same time
Âm thanh	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Khe cắm mở rộng	CPU:
	- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

	Chipset:
	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Giao diện lưu trữ	CPU:
	- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
	- 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset:
	- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
	- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
	- 2 x USB 2.0/1.1 ports on the back panel
	Chipset+2 USB 2.0 Hubs:
	- 4 x USB 2.0/1.1 ports available through the internal USB headers
Kết nối I/O bên trong	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	1 x system fan header
	1 x system fan/water cooling pump header
	2 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	3 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	2 x Thunderbolt™ add-in card connectors
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x serial port header
	1 x Clear CMOS jumper
Kết nối bảng phía sau	1 x PS/2 keyboard/mouse port
	3 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	1 x HDMI port (Note)
	2 x DisplayPorts (Note)
	1 x RJ-45 port
	3 x audio jacks

	(Note) Actual support may vary by CPU.
Điều khiển I/O	iTE® I/O Controller Chip
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Hệ điều hành	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
Kích thước	Micro ATX Form Factor; 24.4cm x 24.4cm
