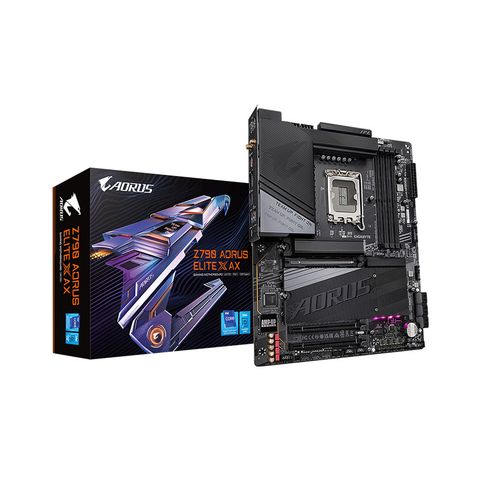

Mainboard Gigabyte Z790 AORUS ELITE X AX DDR5 (Wifi+Bluetooth)(LGA 1700)

Gigabyte

36 tháng

Z790

Intel LGA 1700

14th, 13th, 12th Intel Core, Pentium Gold và Celeron

4 khe

4800, 4000, 5200(O.C.), 5400(O.C.), 5600(O.C.), 5800(O.C.), 6000(O.C.), 6200(O.C.), 6400(O.C.), 6600(O.C.), 6800(O.C.), 7000(O.C.), 7200(O.C.), 7400(O.C.), 7600(O.C.), 7800(O.C), 7900(O.C), 7950(O.C), 8000(O.C), 8200(O.C), 8266(O.C)

192GB

1 x HDMI port
1 x DisplayPort

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper

1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R) jk
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

Realtek® ALC1220-VB CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

CPU:
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
– 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
– 6 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
– 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

ATX

30.5cm x 24.4cm

Đen
